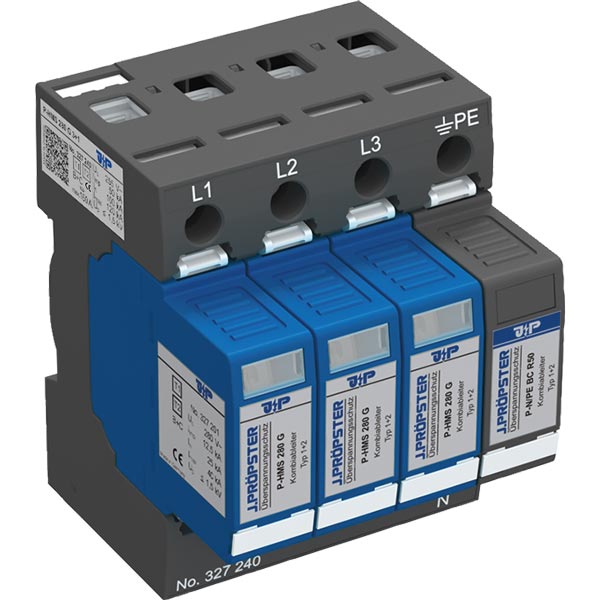

Combined arrester P-HMS G
3+1-pole – without RS
Order number: 327 240
Mains system: TT and TN(C)-S
Max. continuous operating voltage Uc: 255 V ~
Nominal discharge current In: 100 kA (8/20 µs)
Max. discharge current Imax: 120 kA (8/20 µs)
Lightning impulse current Iimp: 50 kA (10/350 µs)
Voltage protection levelUp: < 1.5 kV
Max. backup fuse: 160 A gL/gG
Dimensions: 4 mods.
Mounting on DIN rail 35 mm according to EN 60715
Type: P-HMS 280 G 3+1
